Mirabella Genio Wi-Fi Strip Light

Mirabella Genio Wi-Fi Strip Light

Device Type: light
Electrical Standard: au
Board: esp8266

General Notes

The Mirabella Genio Wi-Fi LED Strip Light features a row of both RGB and cool white LEDs alternating between the two along the strip.

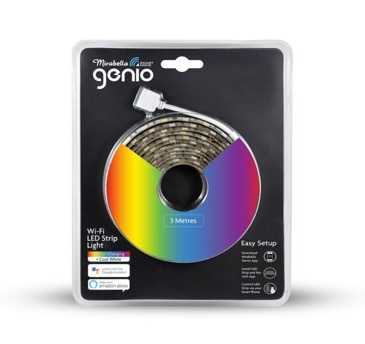

Genio Wi-Fi LED Strip Light

They are sold at Kmart in a 3m version and a 5m version.

Inside is a TYWE3S module based on the ESP8266 microcontroller. It is possible to flash older units OTA using tuya-convert and may also work with current ones. If you attempt to flash a current unit OTA, you should update this page specify if it's still possible or not.

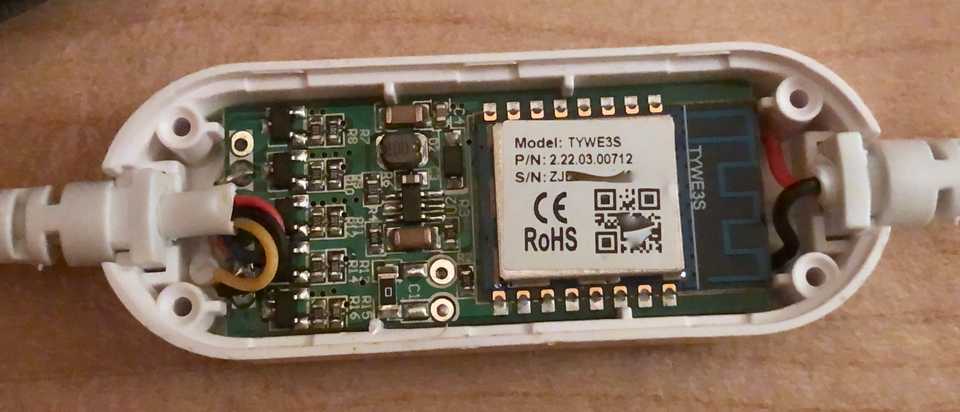

Genio Wi-Fi LED Strip Light Teardown

GPIO Pinout

PinFunction
GPIO0Push Button
GPIO4Light - Red
GPIO5Light - White
GPIO12Light - Green
GPIO14Light - Blue

Basic Configuration

# Config for Mirabella Genio WiFi LED Strip Light
# https://devices.esphome.io/devices/Mirabella-Genio-WiFi-LED-Strip-Light/
esphome:
  name: example-device
  friendly_name: Example Device


esp8266:
  board: esp01_1m

# OTA flashing
ota:
  - platform: esphome


wifi: # Your Wifi network details

# Enable fallback hotspot in case wifi connection fails
  ap:


# Enabling the logging component
logger:


# Enable Home Assistant API
api:


# Enable the captive portal
captive_portal:


output:
  - platform: esp8266_pwm
    id: output_red
    pin: GPIO4
  - platform: esp8266_pwm
    id: output_green
    pin: GPIO12
  - platform: esp8266_pwm
    id: output_blue
    pin: GPIO14
  - platform: esp8266_pwm
    id: output_white
    pin: GPIO5


light:
  - platform: rgbw
    name: "Strip Light"
    id: strip_light
    red: output_red
    green: output_green
    blue: output_blue
    white: output_white


binary_sensor:
  - platform: gpio
    pin:
      number: GPIO0
      mode: INPUT_PULLUP
      inverted: true
    name: "strip_light_pushbutton"
    internal: true
    on_press:
      then:
        - light.toggle: strip_light
