LEDVANCE SMART WIFI B40 4,9W 230V RGBW FR E14

LEDVANCE SMART WIFI B40 4,9W 230V RGBW FR E14

Device Type: light
Electrical Standard: global
Board: bk72xx

LEDVANCE SMART WIFI B40 based on BK7231T chip (WB2L) and using BP1658CJ led driver. Can be flashed with esphome kickstart via tuya-cloudcutter. Profile name: 1.0.3 - BK7231T / oem_bk7231s_light_ty_oldDp.

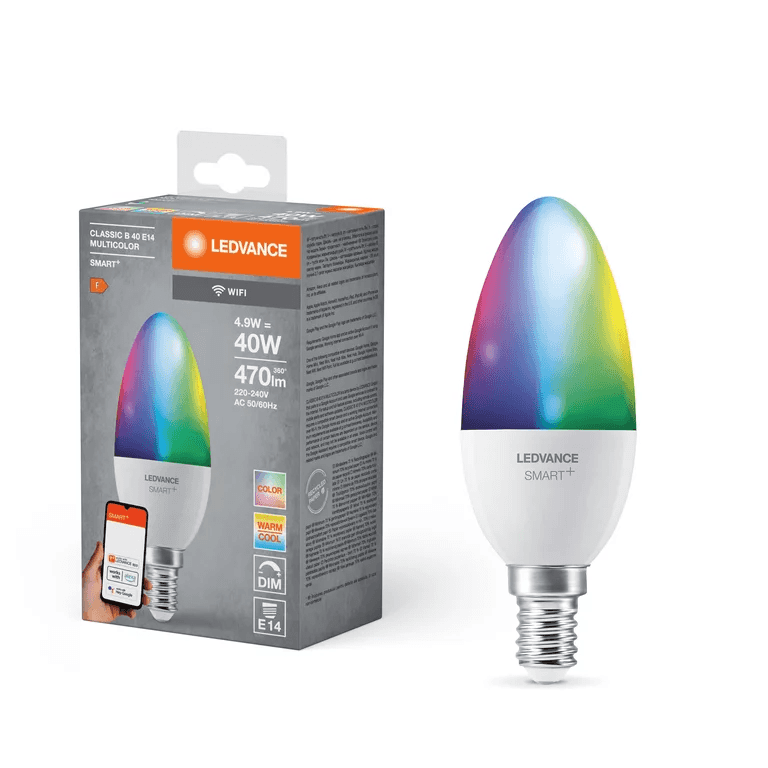

Product Image

ledvance_e14

GPIO Pinout

PinFunction
GPIO8BP1658CJ Data Pin
GPIO9BP1658CJ Clock Pin

Basic Configuration

substitutions:
  devicename: ledvance-e14


esphome:
  name: $devicename
  friendly_name: ledvance-e14


bk72xx:
  board: generic-bk7231t-qfn32-tuya

# OTA flashing
ota:
  - platform: esphome


wifi: # Your Wifi network details

# Enable fallback hotspot in case wifi connection fails
  ap:


# Enabling the logging component
logger:


# Enable Home Assistant API
api:


# Enable the captive portal
captive_portal:


button:
  - platform: restart
    name: Restart


bp1658cj:
  clock_pin: P9
  data_pin: P8
  max_power_color_channels: 4
  max_power_white_channels: 3


output:
  - platform: bp1658cj
    id: output_red
    channel: 2
  - platform: bp1658cj
    id: output_green
    channel: 1
  - platform: bp1658cj
    id: output_blue
    channel: 0
  - platform: bp1658cj
    id: output_cold
    channel: 4
  - platform: bp1658cj
    id: output_warm
    channel: 3


light:
  - platform: rgbww
    id: light_rgbww
    name: Light
    color_interlock: true
    cold_white_color_temperature: 6500 K
    warm_white_color_temperature: 2700 K
    red: output_red
    green: output_green
    blue: output_blue
    cold_white: output_cold
    warm_white: output_warm
