Blitzwolf BW-SHP9 Triple powerstrip with dual USB power

Blitzwolf BW-SHP9 Triple powerstrip with dual USB power

Device Type: plug
Electrical Standard: eu
Board: esp8266

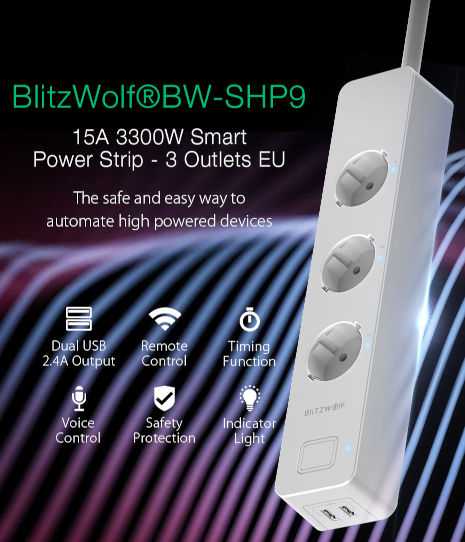

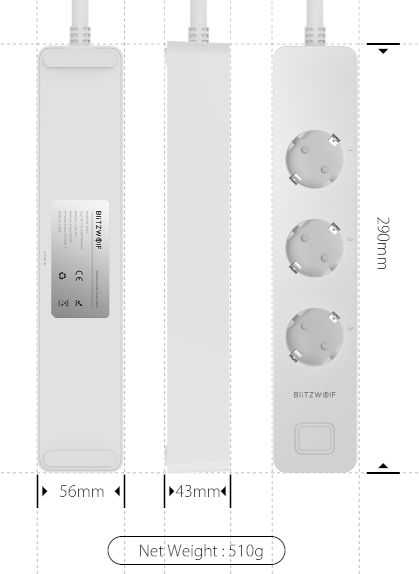

Product image Product Measurements

Model reference: BW-SHP9

The powerstrip has four controllable relays, one for each socket, and one for the dual 2.4A usb power.

Manufacturer: BlitzWolf

How to flash

  1. Open

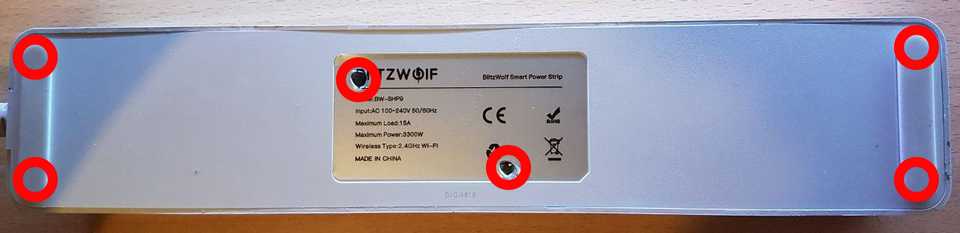

    There are 6 triangle screws to open the box. Product outside

  2. Unmount circuit from the box

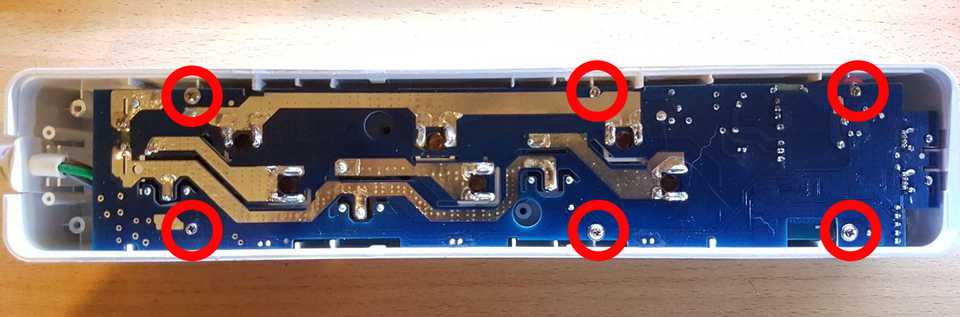

    6 more screws (classic ones) Product Inside

  3. Pins

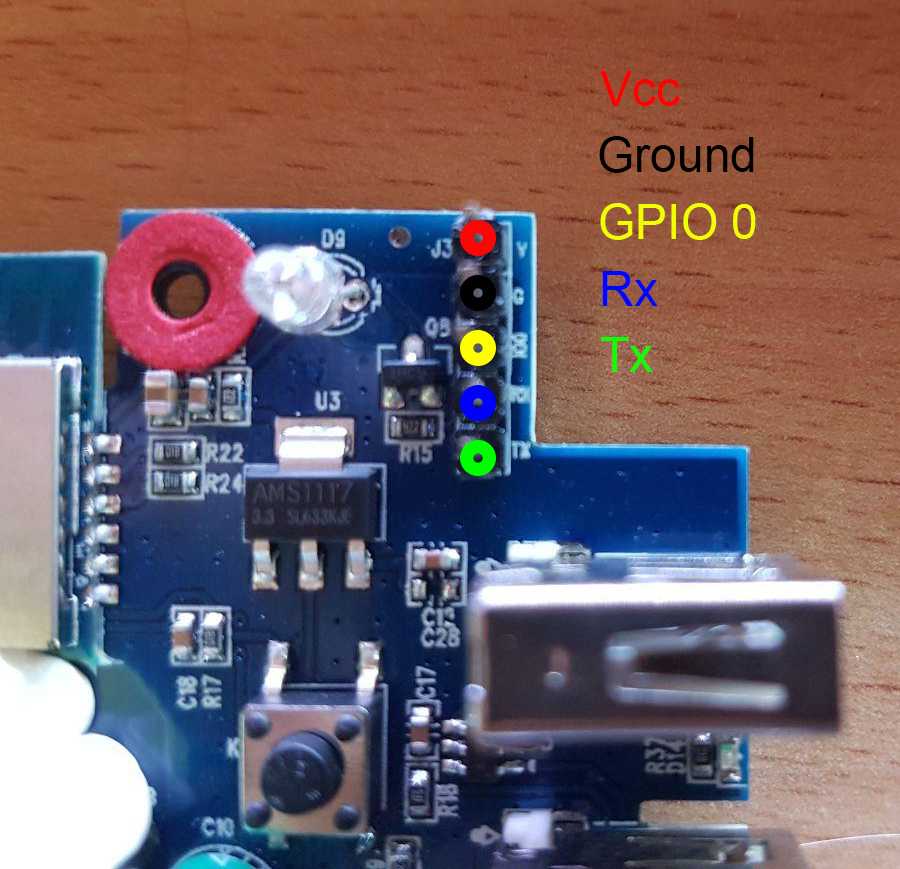

    Pins are at the corner, near usb ports. Vcc is not 3V, it needs to be >4V. To configure chip for flashing GPIO0 needs to be pulled down to ground at boot.

    Product Inside Pins

GPIO Pinout

PinFunction
GPIO12Relay1
GPIO13Button (pullup, inverted)
GPIO14Relay2
GPIO05Relay3
GPIO15Relay4 (usb power)
GPIO00Blue LED

Basic Config

The configuration has some default sensors for wifi reporting etc. There are LED's showing the state of each socked, but they are not settable through GPIO's, they just reflect the state of the socket directly.

substitutions:
  device_name: shp9
  # NO Powermeasurement
  # BW-SHP9
  # relay1 is set up as a lamp, and the button is controlling the relay1
  # All relays can be controlled through Esphome/HA, but the button only controls relay1
  # Wifi is set with static IP, and fast_connect is used as the SSID is hidden
  # The Web server is active, and both web_server and OTA is protected by PW.


esphome:
  name: '${device_name}'


esp8266:
  board: esp8285

# OTA flashing
ota:
  - platform: esphome


wifi: # Your Wifi network details

# Enable fallback hotspot in case wifi connection fails
  ap:


# Enabling the logging component
logger:
  baud_rate: 0


# Enable Home Assistant API
api:


# Enable the captive portal
captive_portal:


# Button configuration
binary_sensor:
  - platform: gpio
    id: button
    internal: true
    pin:
      number: GPIO13
      mode: INPUT_PULLUP
      inverted: true
    on_press:
      - light.toggle: relay1


# Config for switches
switch:
  - platform: gpio
    pin: GPIO14
    id: relay2
    name: 'livingroomextension-socket2'
  - platform: gpio
    pin: GPIO5
    id: relay3
    name: 'livingroomextension-socket3'
  - platform: gpio
    pin: GPIO15
    id: relay4
    name: 'livingroomextension-usb-socket'


# Relay1 is set up as a light
output:
  - platform: gpio
    id: light_relay
    pin: GPIO12


# Relay1 is set up as a light
light:
  - platform: binary
    id: relay1
    name: Floorlamp
    output: light_relay


# Status LED for connection
status_led:
  pin:
    number: GPIO0

Advanced config additions

In the esphome section, you can perform actions when the device boots:

on_boot:
    then:
#  - switch.turn_on: relay1
      - switch.turn_on: relay2
      - switch.turn_on: relay3
      - switch.turn_on: relay4
