Copy
substitutions:
  device_name: shp7
  # Higher value gives lower watt readout
  current_res: '0.002291'
  # Lower value gives lower voltage readout
  voltage_div: '940'

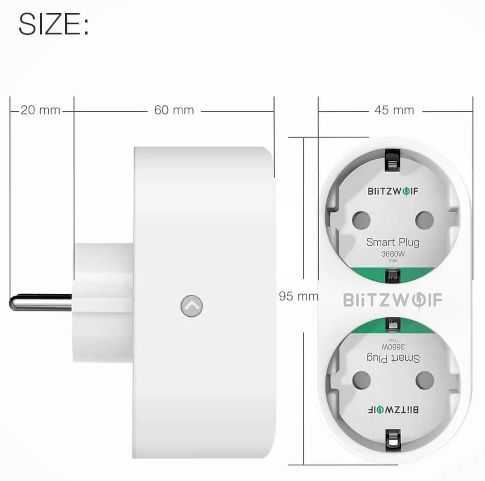

  # BW-SHP7, dual outlet with powermonitoring.
  # One button for each relay, and one red led for each relay, as well as a blue status led
  # Static IP is configured, and fast_connect is enabled, as the SSID is hidden
  # Webserver is active and pw protected, and the OTA is password protected

esphome:
  name: '${device_name}'

esp8266:
  board: esp8285

# OTA flashing
ota:
  - platform: esphome

wifi: # Your Wifi network details

# Enable fallback hotspot in case wifi connection fails
  ap:

# Enabling the logging component
logger:
  baud_rate: 0

# Enable Home Assistant API
api:

# Enable the captive portal
captive_portal:

# Button configuration
binary_sensor:
  - platform: gpio
    id: button1
    name: button1
    internal: true
    pin:
      number: GPIO0
      mode: INPUT_PULLUP
      inverted: true
    on_press:
      - switch.toggle: relay1
  - platform: gpio
    id: button2
    name: button2
    internal: true
    pin:
      number: GPIO12
      mode: INPUT_PULLUP
      inverted: true
    on_press:
      - switch.toggle: relay2
  - platform: gpio
    pin: GPIO15
    id: gpio15_irq
    internal: true

# Setup of LED's used in displaying LED status
output:
   - platform: esp8266_pwm
     id: led1
     pin:
       number: GPIO13
       inverted: true
   - platform: esp8266_pwm
     id: led2
     pin:
       number: GPIO2
       inverted: true

# Config for switches
switch:
  - platform: gpio
    pin: GPIO14
    id: relay1
    name: 'relay1'
    on_turn_on:
      - output.turn_on: led1
    on_turn_off:
      - output.turn_off: led1
  - platform: gpio
    pin: GPIO16
    id: relay2
    name: 'relay2'
    on_turn_on:
      - output.turn_on: led2
    on_turn_off:
      - output.turn_off: led2

# Status LED for connection
status_led:
  pin:
    number: GPIO01
    inverted: true

# Sensors for WIFI signal strength, Uptime, Voltage, Current, Power, Daily energy usage
sensor:
  - platform: hlw8012
    sel_pin:
      number: GPIO03
      inverted: true
    cf_pin: GPIO04
    cf1_pin: GPIO05
    current_resistor: ${current_res}
    voltage_divider: ${voltage_div}
    current:
      name: '${device_name} current'
      unit_of_measurement: 'A'
      accuracy_decimals: 3
      icon: mdi:flash-outline
    voltage:
      name: '${device_name} voltage'
      unit_of_measurement: 'V'
      icon: mdi:flash-outline
    power:
      name: '${device_name} power'
      unit_of_measurement: 'kW'
      id: power
      accuracy_decimals: 3
      filters:
        - multiply: 0.001
      icon: mdi:flash-outline
    change_mode_every: 4
    update_interval: 10s
  - platform: total_daily_energy
    name: '${device_name} daily energy'
    power_id: power
    unit_of_measurement: kWh
    accuracy_decimals: 5

Copy
sensor:
  - platform: hlw8012
    energy:
      name: "${device_name} Energy"
      unit_of_measurement: "Wh"
      icon: mdi:flash-outline

Copy
on_boot:
    then:
      - switch.turn_on: relay1
#  - switch.turn_on: relay2
