Arlec Smart 2m/5m LED Strip Light

Arlec Smart 2m/5m LED Strip Light

Device Type: light
Electrical Standard: au
Board: esp8266

General Notes

This configuration is for the Arlec Smart 2m LED Strip Light and Arlec Smart 5m LED Strip Light which comes as a colour changing LED strip with controller and transformer.

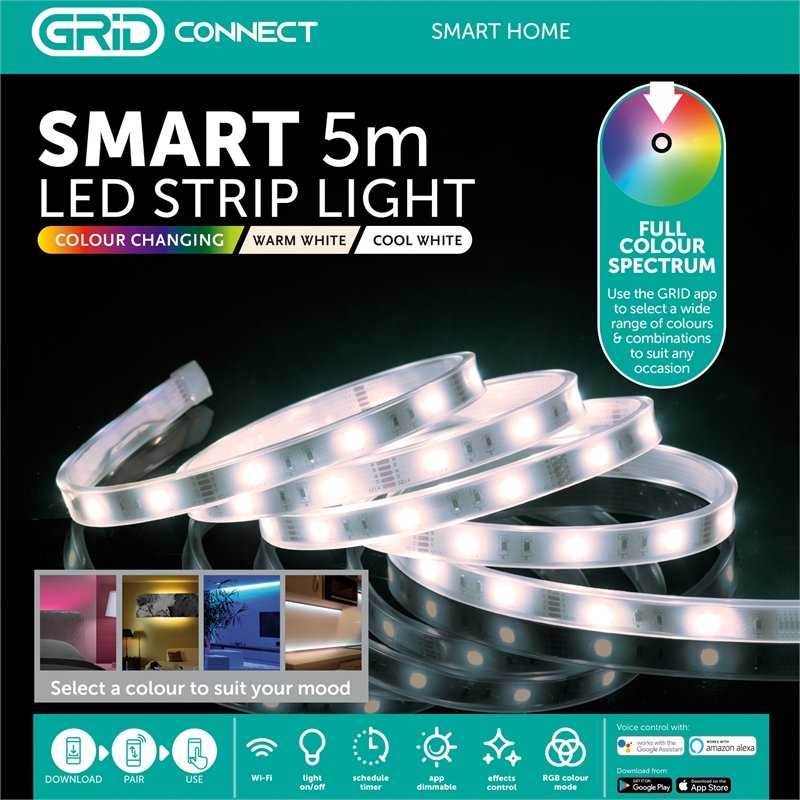

Arlec Smart 5m LED Strip Light

GPIO Pinout

PinFunction
GPIO4Red Channel
GPIO12Green Channel
GPIO14Blue Channel
GPIO5White Channel

Basic Configuration

esphome:
  name: led_strip

esp8266:
  board: esp01_1m

# OTA flashing
ota:
  - platform: esphome


wifi: # Your Wifi network details

# Enable fallback hotspot in case wifi connection fails
  ap:


# Enabling the logging component
logger:


# Enable Home Assistant API
api:


# Enable the captive portal
captive_portal:


light:
  - platform: rgbw
    name: "LED Strip"
    red: output_red
    green: output_green
    blue: output_blue
    white: output_white
    restore_mode: RESTORE_DEFAULT_OFF


output:
  - platform: esp8266_pwm
    id: output_red
    pin: GPIO4
  - platform: esp8266_pwm
    id: output_green
    pin: GPIO12
  - platform: esp8266_pwm
    id: output_blue
    pin: GPIO14
  - platform: esp8266_pwm
    id: output_white
    pin: GPIO5
