Sonoff M5 Wall Switch 1/2/3-gang

Device Type: switch
Electrical Standard: eu
Board: esp32
Difficulty: Disassembly required, 3/5

Notes

status LED (blue) in left-most button
channel LEDs (red) are dimmable (PWM) while relays OFF; 100% bright when ON
in 1-gang version LED 1 to/can be activated separately from Relay
in 2-gang version LED 2 to/can be activated separately from Relay

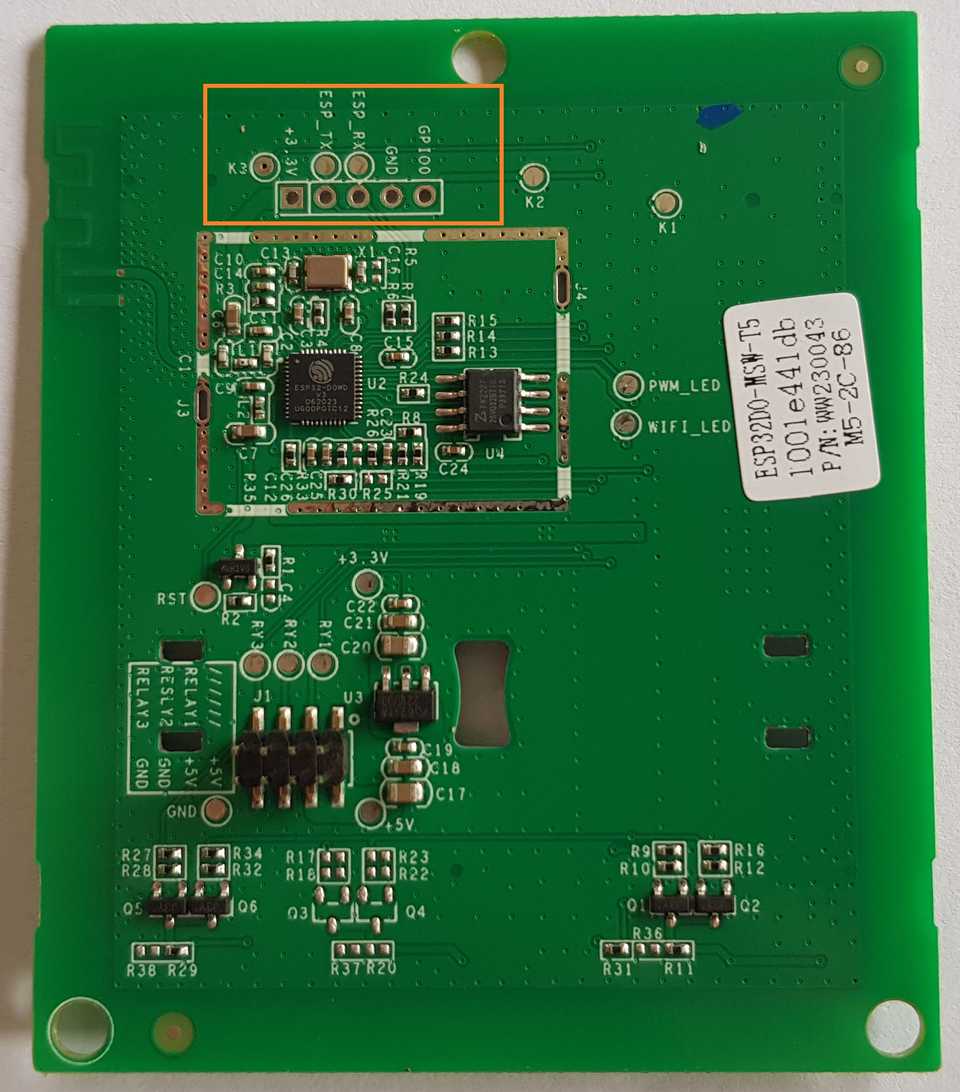

header

GPIO Pinout

1-Gang Version

Pin	Function
GPIO00	Button 1
GPIO23	Relay 1
GPIO19	LED 1
GPIO05	Status LED
GPIO18	PWM for LED 1

2-Gang Version

Pin	Function
GPIO04	Button 1
GPIO15	Button 2
GPIO23	Relay 1 / LED 1
GPIO19	Relay 2
GPIO22	LED 2
GPIO05	Status LED
GPIO18	PWM for LED 1/2

3-Gang Version

Pin	Function
GPIO04	Button 1
GPIO00	Button 2
GPIO15	Button 3
GPIO23	Relay 1 / LED 1
GPIO19	Relay 2 / LED 2
GPIO22	Relay 3 / LED 3
GPIO05	Status LED
GPIO18	PWM for LED 1/2/3

Basic Configuration (2-Gang)

esphome:
  name: Sonoff M5 2gang

esp32:
  board: esp32dev
  framework:
    type: arduino

# OTA flashing
ota:
  - platform: esphome

wifi: # Your Wifi network details

# Enable fallback hotspot in case wifi connection fails
  ap:

# Enabling the logging component
logger:

# Enable Home Assistant API
api:

# Enable the captive portal
captive_portal:

sensor:

  - platform: uptime
    name: "Uptime"
    id: sensor_uptime
    update_interval: 300s
    entity_category: "diagnostic"

button:
  - platform: restart
    name: "Restart"
    id: button_restart

switch:
  - platform: gpio
    name: "Left"
    pin: GPIO23
    id: relay_1

  - platform: gpio
    name: "Right"
    pin: GPIO19
    id: relay_2
    on_turn_on:
      - output.turn_on: led_2
    on_turn_off:
      - output.turn_off: led_2

output:
  - platform: gpio
    id: led_2
    pin:
      number: GPIO22
      inverted: False

  - platform: ledc
    id: pwm_output
    pin: GPIO18
    frequency: 1000 Hz

binary_sensor:

  - platform: template
    name: "API connected"
    id: sensor_api_connected
    internal: True
    entity_category: 'diagnostic'
    device_class: 'connectivity'
    lambda: return global_api_server->is_connected();
    on_press:
      - light.turn_on: led_status
    on_release:
      - light.turn_off: led_status

  - platform: gpio
    name: "Left"
    pin:
      number: GPIO04
      mode: INPUT_PULLUP
      inverted: False
    on_press:
      - switch.toggle: relay_1

  - platform: gpio
    name: "Right"
    pin:
      number: GPIO15
      mode: INPUT_PULLUP
      inverted: False
    on_press:
      - switch.toggle: relay_2

light:
  - platform: status_led
    name: "LED"
    id: led_status
    pin:
      number: GPIO05
      inverted: True
    internal: True
    restore_mode: ALWAYS_OFF

  - platform: monochromatic
    output: pwm_output
    name: "LEDs"
    restore_mode: RESTORE_DEFAULT_OFF
    icon: 'mdi:led-outline'
    entity_category: 'config'

Advanced Configuration (3-Gang, US Version)

# ESPHome Firmware
# Sonoff Switchman M5 3-Gang US
# Copyright (c) 2024 Mario Di Vece
# License: [MIT](https://opensource.org/license/mit/)
# Decription:
# Aims to provide a feature-rich, production-ready firmware for this elegant device
# - Provides Diagnostic data plus, status LED indicator when not connected to Home Assistant API
# - Relays may be configured individually on the UI to work in decoupled mode.
#   LEDs are physically connected to the relays, and they can't be individually controlled :(
# - Exposes gestures via events:
#   esphome.on_gesture { button: (A|B|C), gesture: (click|double_click|hold) }
# - Off-state (Background Brightness) of the LEDs is configurable via the UI
#
# Example file (sonoff-m5-3g-office-01.yaml)
#
# substitutions:
#   usemac: "false"
#   friendly: "Sonoff M5 3G - Office Switch - 01"
#   uniquename: "sonoff-m5-3g-office-01"
#
# packages:
#   base_package:
#     url: https://github.com/mariodivece/esphometemplates/
#     ref: main
#     files: [sonoff-m5-3g-us.yaml]
#     refresh: 0d


# Basic substitutions (can be safely overriden)
substitutions:
  usemac: "true"
  friendly: "Sonoff Switchman M5 3G US"
  uniquename: "switch-m5-3g"
  loglevel: INFO
  device_name: "M53G"
  device_make: "Sonoff"
  sw_version: "2024.2.4"
  package_url: "github://mariodivece/esphometemplates/sonoff-m5-3g-us.yaml@main"

# Define the board for the compiler
esp32:
  board: esp32dev
  framework:
    type: arduino

# Setup the integration and define some project variables
esphome:
  name: "${uniquename}"
  friendly_name: "${friendly}"
  comment: "${device_name} by ${device_make}"
  name_add_mac_suffix: ${usemac}
  min_version: "2023.2.0"
  project:
    name: "${device_make}.${device_name}"
    version: "${sw_version}"

# Allow importing this package
dashboard_import:
  package_import_url: ${package_url}
  import_full_config: false

# OTA flashing
ota:
  - platform: esphome

wifi: # Your Wifi network details

# Enable fallback hotspot in case wifi connection fails
  ap:

# Enabling the logging component
logger:

# Enable Home Assistant API
api:

# Enable the captive portal
captive_portal:

sensor:

- platform: uptime
    name: "Uptime"
    id: sensor_uptime
    update_interval: 300s
    entity_category: "diagnostic"

# Provide a pre-built button for restarting the device
button:
  - platform: restart
    name: "Restart"
    id: button_restart

switch:
  # Physical GPIO Relay
  - platform: gpio
    name: "Relay A"
    pin: GPIO23
    id: relay_a

  # Physical GPIO Relay
  - platform: gpio
    name: "Relay B"
    pin: GPIO19
    id: relay_b

  # Physical GPIO Relay
  - platform: gpio
    name: "Relay C"
    pin: GPIO22
    id: relay_c

  # Config-only switch to decouple relay from button
  - platform: template
    name: "Decoupling - Relay A"
    id: relay_a_decoupled
    optimistic: true
    restore_mode: RESTORE_DEFAULT_OFF
    icon: 'mdi:link-box-outline'
    entity_category: 'config'

  # Config-only switch to decouple relay from button
  - platform: template
    name: "Decoupling - Relay B"
    id: relay_b_decoupled
    optimistic: true
    restore_mode: RESTORE_DEFAULT_OFF
    icon: 'mdi:link-box-outline'
    entity_category: 'config'

  # Config-only switch to decouple relay from button
  - platform: template
    name: "Decoupling - Relay C"
    id: relay_c_decoupled
    optimistic: true
    restore_mode: RESTORE_DEFAULT_OFF
    icon: 'mdi:link-box-outline'
    entity_category: 'config'

output:
  # Physical GPIO PWM for off-state background brightness
  # This pin controls the background brightness for all LEDs
  # physically attached to the relays
  - platform: ledc
    id: pwm_output
    pin: GPIO18
    frequency: 1000 Hz

binary_sensor:
  # Diagnostic sensor for connection
  - platform: status
    name: "Status"
    id: sensor_status

  # Make the status LED blink when not connected/trying to connect
  - platform: template
    name: "API connected"
    id: sensor_api_connected
    internal: true
    entity_category: 'diagnostic'
    device_class: 'connectivity'
    lambda: return global_api_server->is_connected();
    on_press:
      - light.turn_off: led_status
    on_release:
      - light.turn_on: led_status

  # Physical Button A
  - platform: gpio
    name: "Button A"
    id: button_a
    pin:
      number: GPIO04
      mode: INPUT_PULLUP
      inverted: true

    filters:
      - delayed_on: 10ms

    on_press:
      - if:
          condition:
            switch.is_off: relay_a_decoupled
          then:
            - switch.toggle: relay_a

    on_multi_click:
      # single click detection
      - timing:
        - ON for at most 900ms
        - OFF for at least 600ms
        then:
          - homeassistant.event:
              event: esphome.on_gesture
              data:
                button: "A"
                gesture: "single_click"

      # double click detection
      - timing:
          - ON for at most 500ms
          - OFF for at most 400ms
          - ON for at most 500ms
          - OFF for at least 250ms
        then:
          - homeassistant.event:
              event: esphome.on_gesture
              data:
                button: "A"
                gesture: "double_click"

      # hold detection
      - timing:
          - ON for at least 1s
        then:
          - while:
              condition:
                binary_sensor.is_on: button_a
              then:
                - light.toggle: led_status
                - homeassistant.event:
                    event: esphome.on_gesture
                    data:
                      button: "A"
                      gesture: "button_hold"
                - delay: 100ms
          - light.turn_off: led_status

  - platform: gpio
    name: "Button B"
    id: button_b
    pin:
      number: GPIO00
      mode: INPUT_PULLUP
      inverted: true

    filters:
      - delayed_on: 10ms

    on_press:
      - if:
          condition:
            switch.is_off: relay_b_decoupled
          then:
            - switch.toggle: relay_b

    on_multi_click:
      # single click detection
      - timing:
        - ON for at most 900ms
        - OFF for at least 600ms
        then:
          - homeassistant.event:
              event: esphome.on_gesture
              data:
                button: "B"
                gesture: "single_click"

      # double click detection
      - timing:
          - ON for at most 500ms
          - OFF for at most 400ms
          - ON for at most 500ms
          - OFF for at least 250ms
        then:
          - homeassistant.event:
              event: esphome.on_gesture
              data:
                button: "B"
                gesture: "double_click"

      # hold detection
      - timing:
          - ON for at least 1s
        then:
          - while:
              condition:
                binary_sensor.is_on: button_b
              then:
                - light.toggle: led_status
                - homeassistant.event:
                    event: esphome.on_gesture
                    data:
                      button: "B"
                      gesture: "button_hold"
                - delay: 100ms
          - light.turn_off: led_status

  - platform: gpio
    name: "Button C"
    id: button_c
    pin:
      number: GPIO15
      mode: INPUT_PULLUP
      inverted: true

    filters:
      - delayed_on: 10ms

    on_press:
      - if:
          condition:
            switch.is_off: relay_c_decoupled
          then:
            - switch.toggle: relay_c

    on_multi_click:
      # single click detection
      - timing:
        - ON for at most 900ms
        - OFF for at least 600ms
        then:
          - homeassistant.event:
              event: esphome.on_gesture
              data:
                button: "C"
                gesture: "single_click"

      # double click detection
      - timing:
          - ON for at most 500ms
          - OFF for at most 400ms
          - ON for at most 500ms
          - OFF for at least 250ms
        then:
          - homeassistant.event:
              event: esphome.on_gesture
              data:
                button: "C"
                gesture: "double_click"

      # hold detection
      - timing:
          - ON for at least 1s
        then:
          - while:
              condition:
                binary_sensor.is_on: button_c
              then:
                - light.toggle: led_status
                - homeassistant.event:
                    event: esphome.on_gesture
                    data:
                      button: "C"
                      gesture: "button_hold"
                - delay: 100ms
          - light.turn_off: led_status

light:
  # Physical pin to the connection status LED
  # We don't expose this to the HA UI (internal)
  - platform: status_led
    name: "LED"
    id: led_status
    pin:
      number: GPIO05
      inverted: true
    internal: true
    restore_mode: RESTORE_DEFAULT_ON

  # HA UI connection to the background brightness (PWM) pin
  - platform: monochromatic
    output: pwm_output
    name: "Background Brightness"
    restore_mode: RESTORE_DEFAULT_OFF
    icon: 'mdi:led-outline'
    entity_category: 'config'
