Xiaomi Mi Desklamp

Xiaomi Mi Desklamp

Device Type: light
Electrical Standard: global
Board: esp8266

substitutions:
friendly_name: Mi Desk Lamp
device_name: mi-desklamp
esphome:
name: ${device_name}
comment: ${friendly_name}
esp8266:
board: esp01_1m
# OTA flashing
ota:
- platform: esphome
wifi: # Your Wifi network details
# Enable fallback hotspot in case wifi connection fails
ap:
# Enabling the logging component
logger:
# Enable Home Assistant API
api:
# Enable the captive portal
captive_portal:
# Enable the Web Server component
webserver:
# Sync time with Home Assistant
time:
- platform: homeassistant
id: homeassistant_time
sensor:
# Uptime sensor
- platform: uptime
name: ${friendly_name} Uptime
# Rotary
- platform: rotary_encoder
id: rotation
pin_a: GPIO13
pin_b: GPIO12
resolution: 2
on_value:
then:
- if:
condition:
# Check if Button is pressed while rotating
lambda: 'return id(button).state;'
then:
# If Button is pressed, change CW/WW
- lambda: |-
auto min_temp = id(light1).get_traits().get_min_mireds();
auto max_temp = id(light1).get_traits().get_max_mireds();
auto cur_temp = id(light1).current_values.get_color_temperature();
auto new_temp = max(min_temp, min(max_temp, cur_temp + (x * 10)));
auto call = id(light1).turn_on();
call.set_color_temperature(new_temp);
call.perform();
else:
# If Button is not pressed, change brightness
- light.dim_relative:
id: light1
relative_brightness: !lambda |-
return x / 25.0;
# Reset Rotation to 0
- sensor.rotary_encoder.set_value:
id: rotation
value: 0
binary_sensor:
- platform: gpio
id: button
pin:
number: GPIO2
inverted: true
on_click:
then:
- light.toggle: light1
output:
- platform: esp8266_pwm
pin: GPIO4
id: output_cold
- platform: esp8266_pwm
pin: GPIO5
id: output_warm
light:
- platform: cwww
id: light1
default_transition_length: 0s
constant_brightness: true
name: ${friendly_name} Light
cold_white: output_cold
warm_white: output_warm
cold_white_color_temperature: 6500K
warm_white_color_temperature: 2650K
gamma_correct: 0

alt text

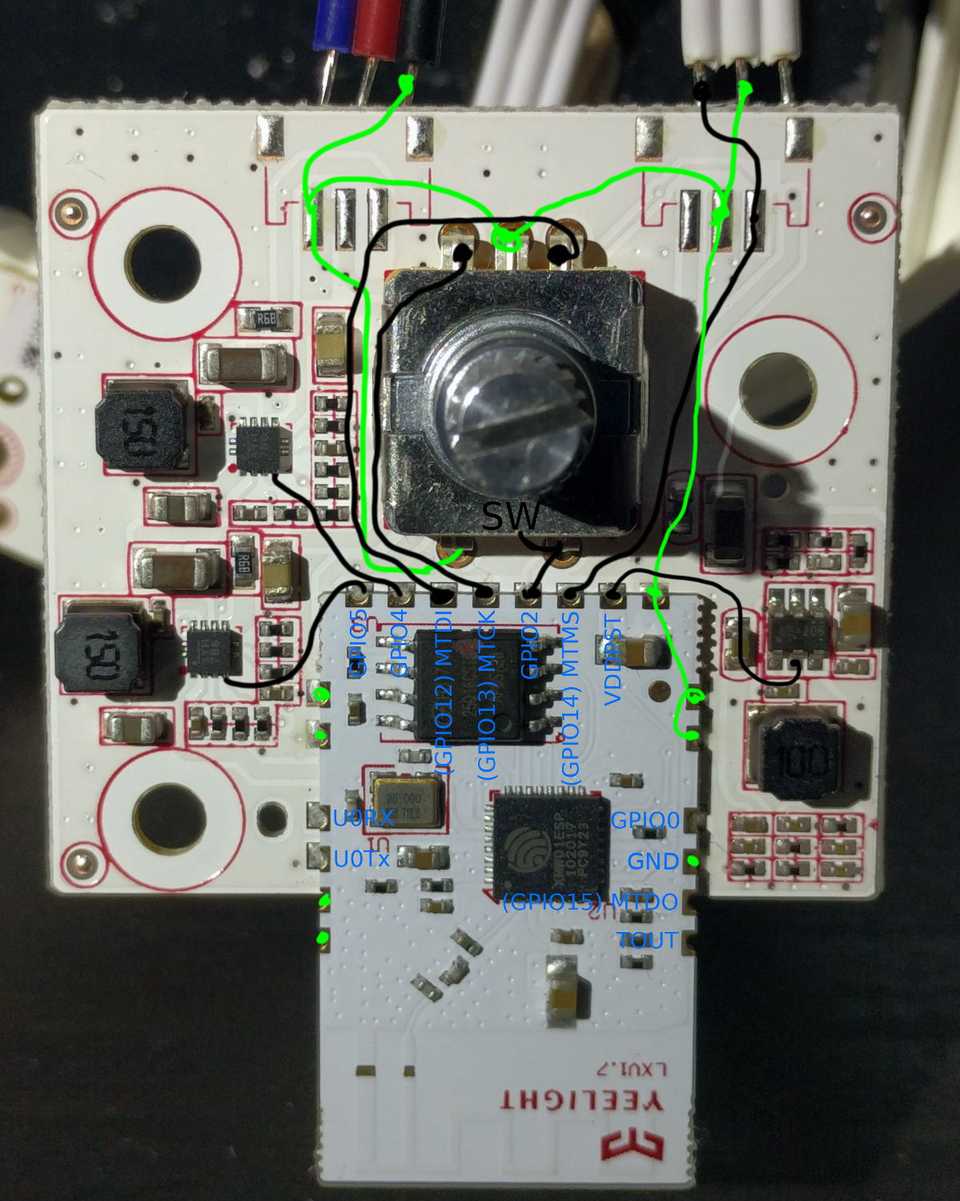

For serial flashing you need two power wires (GND, VDDPST- AKA VCC 3.3v), two serial wires (U0RX, U0TX) and the boot mode pin (GPIO0). On your Serial Adaptor connect U0RX to TX and U0TX to RX. ESP also needs to be put into programming mode before the firmware can be uploaded by connecting GPIO0 pin to GND prior to applying power.
