MagicHome-ZJ-WFMN-C-Single Color V1.1 LED Controller

MagicHome-ZJ-WFMN-C-Single Color V1.1 LED Controller

Device Type: light
Electrical Standard: global
Board: esp8266
Difficulty: Soldering required, 4/5

General Notes

MagicHome LED controller too be used with an monochromatic LED strip.

information_source Please note that MagicHome began to produce devices with BL602 chip instead of ESP. ESPHome is not compatible with BL602. Before buying make sure a controller is using the right chip.

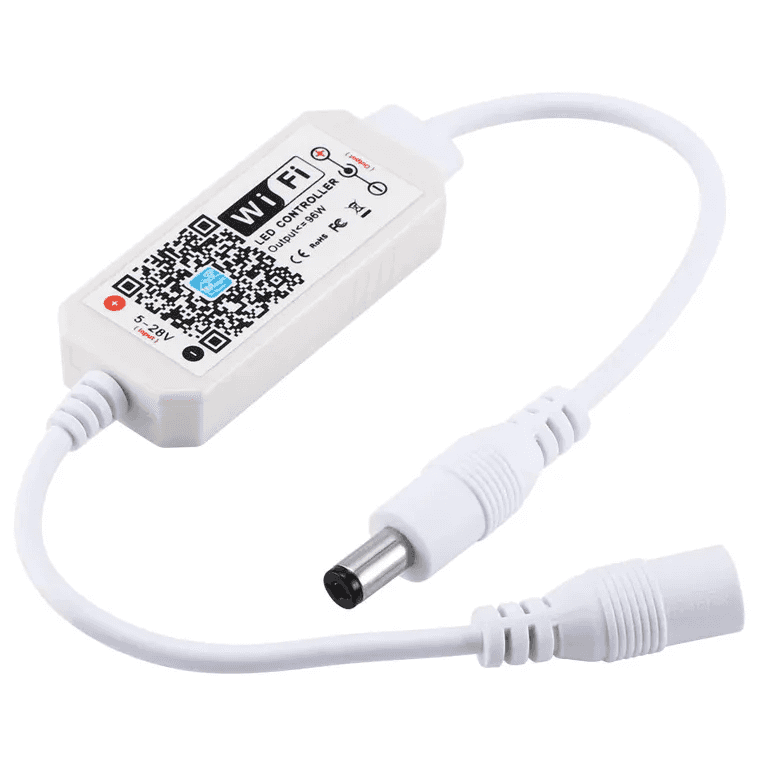

alt text

GPIO Pinout

PinFunction
GPIO12PWM

Basic Configuration

# Basic Config


substitutions:
  device_name: led-strip
  device_description: RGB LED Strip Controller.
  friendly_name: LED Controller


esphome:
  name: ${device_name}
  comment: ${device_description}


esp8266:
  board: esp01_1m


# OTA flashing
ota:
  - platform: esphome


wifi: # Your Wifi network details

# Enable fallback hotspot in case wifi connection fails
  ap:


# Enabling the logging component
logger:


# Enable Home Assistant API
api:


# Enable the captive portal
captive_portal:


# Enable the Web Server component
webserver:


output:
  - platform: esp8266_pwm
    id: LED_controller
    pin: GPIO12


light:
  - platform: monochromatic
    name: "LED"
    output: LED_controller
