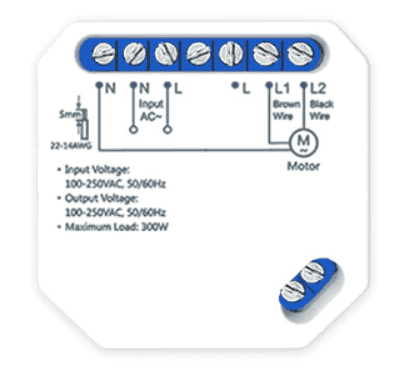

#SC500W
substitutions:
  device_name: SC500W
  friendly_name: "SC500W"
  device_description: "SC500W"

esphome:
  name: ${device_name}
  comment: "${device_description}"

esp8266:
  board: esp01_1m

# OTA flashing
ota:
  - platform: esphome

wifi: # Your Wifi network details

# Enable fallback hotspot in case wifi connection fails
  ap:

# Enabling the logging component
logger:

# Enable Home Assistant API
api:

# Enable the captive portal
captive_portal:

# Enable the Web Server component
webserver:

binary_sensor:
  - platform: gpio
    name: ${friendly_name} button
    pin: GPIO13
    internal: true

  - platform: gpio
    name: ${friendly_name} S1 switch input
    pin: GPIO4
    id: button1
    disabled_by_default: true
    filters:
      - invert:
    on_press:
      if:
        condition:
          binary_sensor.is_on: button1
        then:
          - light.turn_on: light1
    on_release:
      if:
        condition:
          binary_sensor.is_off: button1
        then:
          - light.turn_off: light1
  - platform: gpio
    name: ${friendly_name} S2 switch input
    pin: GPIO5
    id: button2
    disabled_by_default: true
    filters:
      - invert:
    on_press:
      if:
        condition:
          binary_sensor.is_on: button2
        then:
          - light.turn_on: light2
    on_release:
      if:
        condition:
          binary_sensor.is_off: button2
        then:
          - light.turn_off: light2

output:
  - platform: gpio
    pin: GPIO12
    id: relay1
  - platform: gpio
    pin: GPIO14
    id: relay2

light:
  - platform: binary
    name: ${friendly_name} L1 output
    id: light1
    output: relay1
  - platform: binary
    name: ${friendly_name} L2 output
    id: light2
    output: relay2

status_led:
  pin:
    number: GPIO3
    inverted: true
