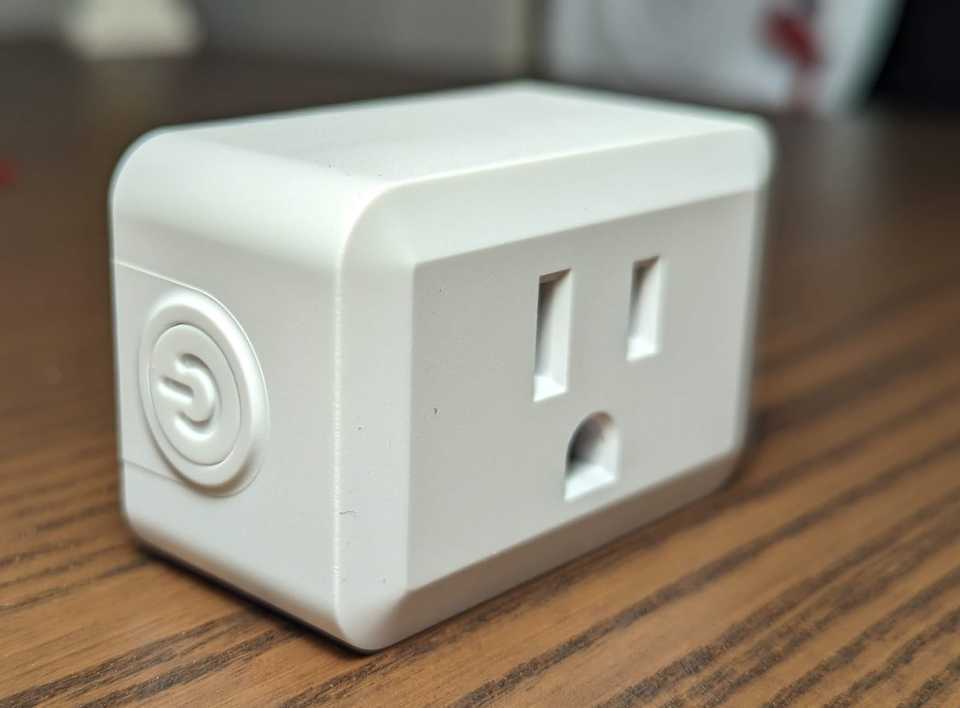

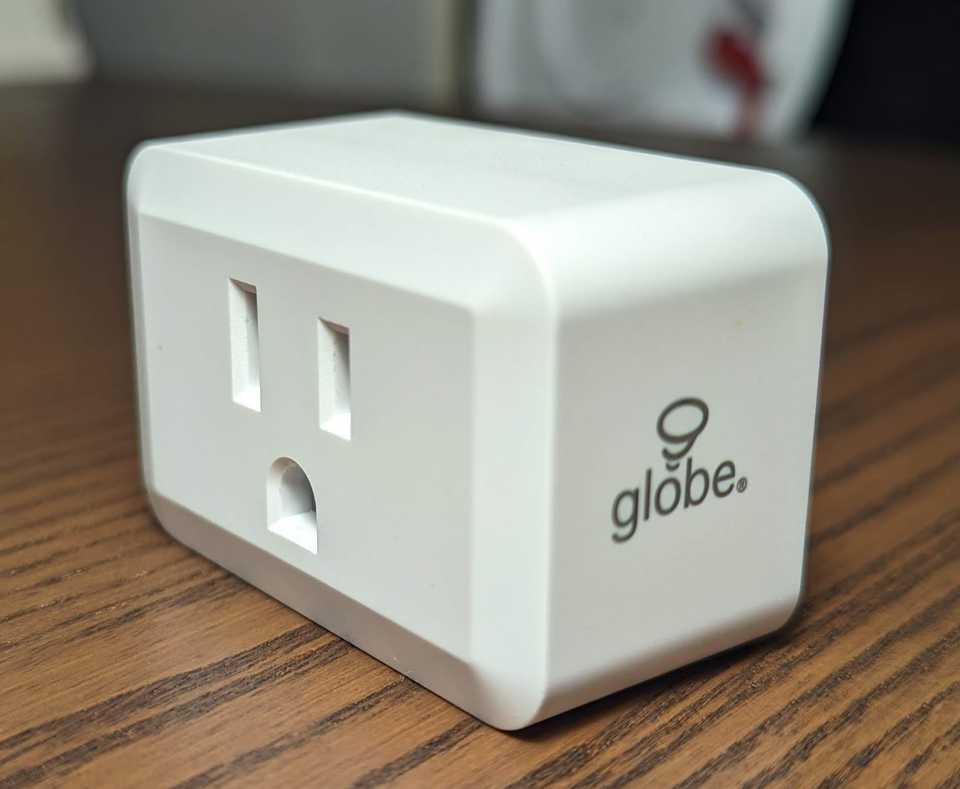

Globe Electric Wi-Fi Smart Plug 50359

Globe Electric Wi-Fi Smart Plug 50359

Device Type: plug
Electrical Standard: us
Board: bk72xx
Difficulty: Plug-n-flash, 2/5

alt text alt text alt text

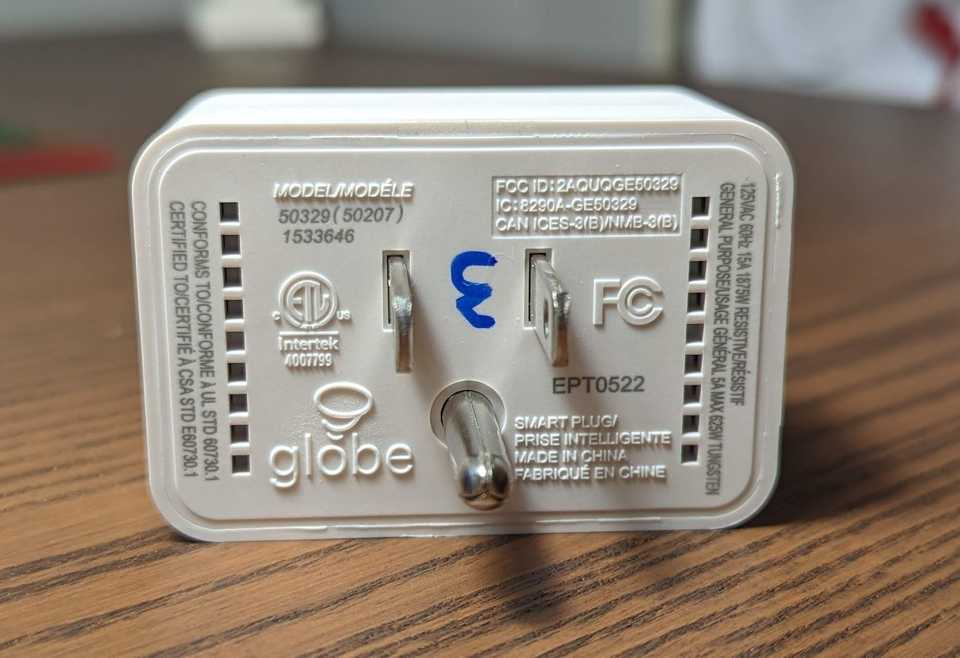

Sold at Costco model (50207)

Custom Firmware Needed

This device uses the WB2S module that comes with Tuya firmware which can be flashed to esphome using cloudcutter following instructions here

Support for WB2S modules is available in ESPhome 2023.9.0 (https://github.com/esphome/esphome/pull/3509).

GPIO Pinout

Due to the fact that this uses a custom esphome firmware the pin numbers start with a P instead of the usual GPIO

PinNameFunction
P7LEDStatus LED
P26ButtonPower Button
P24OutletRelay

Basic Configuration

# Globe Electric 50329 smart plug
substitutions:
  number: "1"
  device_name: globe-plug-${number}
  device_description: Globe Electric 50329 Smart plug
  friendly_name: Globe Plug ${number}


esphome:
  name: ${device_name}
  comment: ${device_description}

# OTA flashing
ota:
  - platform: esphome


wifi: # Your Wifi network details

# Enable fallback hotspot in case wifi connection fails
  ap:


# Enabling the logging component
logger:


# Enable Home Assistant API
api:


# Enable the captive portal
captive_portal:


bk72xx:
  board: wb2s


light:
  - platform: status_led
    name: "led"
    internal: true
    id: led
    pin:
      number: P7
      inverted: true


binary_sensor:
  - platform: gpio
    pin:
      number: P26
      inverted: true
    id: button1
    filters:
      - delayed_on: 10ms
      - delayed_off: 10ms
    on_click:
      - switch.toggle: outlet


  - platform: status
    name: ${friendly_name} status


switch:
  - platform: gpio
    name: ${friendly_name} Outlet
    id: outlet
    pin: P24
    icon: mdi:power-socket-us
    on_turn_on:
      - light.turn_on: led
    on_turn_off:
      - light.turn_off: led
