DETA Mechanism Switch (6014HA)

DETA Mechanism Switch (6014HA)

Device Type: switch
Electrical Standard: au
Board: esp8266

General Notes

A smart switch that does not require a neutural, needs a minumum 20w load or a load correction device

Available from Bunnings

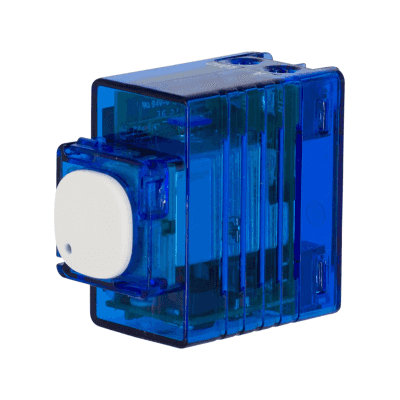

Deta 6014 Switch

GPIO Pinout

PinFunction
GPIO12Blue LED (Inverted: true)
GPIO14Button
GPIO16Relay

Conversion

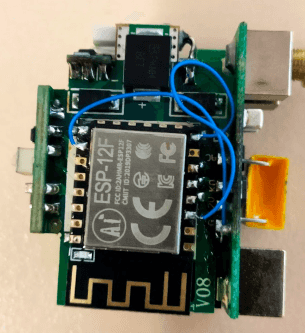

To use ESPHome, replace the WB3S with a ESP12F.

  • Link GPIO15 to Gnd (recommended via 10k resistor)
  • Link EN to Vcc (recommended via 10k resistor)

Due to limited space, conversion below ommited the resistors. No issues but it is outside specifications. Deta converted

Configuration

substitutions:
  name: "deta-6014-01"
  friendly_name: "DETA 1G"
  project_name: "DETA.60141HA"
  project_version: "1.0"
  device_description: "Deta 6014HA Light Switch"


esphome:
  name: "${name}"
  comment: "${device_description}"
  project:
    name: "${project_name}"
    version: "${project_version}"


esp8266:
  board: esp12e

# OTA flashing
ota:
  - platform: esphome


wifi: # Your Wifi network details

# Enable fallback hotspot in case wifi connection fails
  ap:


# Enabling the logging component
logger:


# Enable Home Assistant API
api:


# Enable the captive portal
captive_portal:


output:
  # Button
  - platform: gpio
    pin: GPIO16
    id: relay1


light:
  # Top (or only) button
  - platform: binary
    name: "${friendly_name} Light"
    output: relay1
    id: light1
    on_turn_on:
     - light.turn_on: status1
    on_turn_off:
     - light.turn_off: status1
  - platform: status_led
    id: status1
    pin:
      number: GPIO12
      inverted: true


# Buttons
binary_sensor:
  # Button
  - platform: gpio
    pin:
      number: GPIO14
      mode:
        input: true
        pullup: true
      inverted: True
    name: "${friendly_name} Button"
    #toggle relay on push
    on_press:
      - light.toggle: light1


button:
  - platform: restart
    id: restart_button
    name: "${friendly_name} Restart"
    disabled_by_default: true
