Connect SmartHome 10W CCT Smart White LED Bulb B22 (CSH-B22WW10W)

Connect SmartHome 10W CCT Smart White LED Bulb B22 (CSH-B22WW10W)

Device Type: light
Electrical Standard: au
Board: esp8266

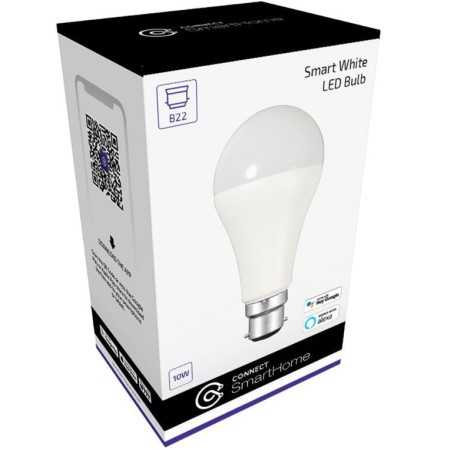

Connect SmartHome 10W CCT Smart White LED Bulb

Device Info

This Connect Smart Bulb has a B22 Bayonet fitting.

SKU: CSH-B22WW10W

Available from:

Manufacturer:

GPIO Pinout

PinFunction
GPIO5Cold white color temperature
GPIO13Warm white color temperature

Basic Configuration

substitutions:
  device_name: "csh-B22WW10W"
  friendly_name: "Connect SmartHome CSH-B22WW10W"


esphome:
  name: ${device_name}
  comment: ${friendly_name}


esp8266:
  board: esp01_1m
  restore_from_flash: true

# OTA flashing
ota:
  - platform: esphome


wifi: # Your Wifi network details

# Enable fallback hotspot in case wifi connection fails
  ap:


# Enabling the logging component
logger:


# Enable Home Assistant API
api:


# Enable the captive portal
captive_portal:


output:
  - platform: esp8266_pwm
    id: cw_color_temp
    pin: GPIO5
  - platform: esp8266_pwm
    id: ww_color_temp
    pin: GPIO13


light:
  - platform: cwww
    name: ${friendly_name}
    cold_white: cw_color_temp
    warm_white: ww_color_temp
    cold_white_color_temperature: 6500 K
    warm_white_color_temperature: 2700 K
    effects:
      - random:
      - pulse:
      - strobe:
      - flicker:
