Azpen Home with USB port

Azpen Home with USB port

Device Type: plug
Electrical Standard: us
Board: esp8266

Product Images

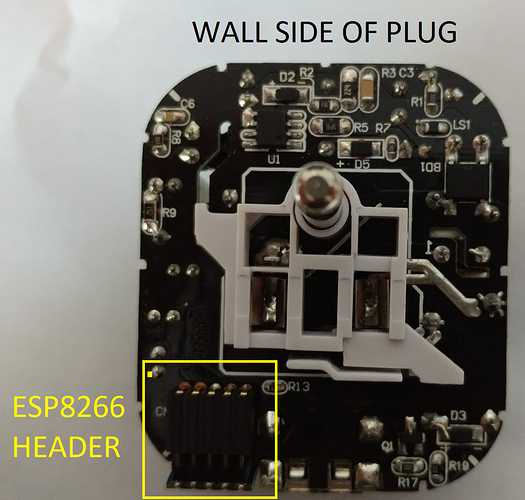

Wall side of relay board alt text

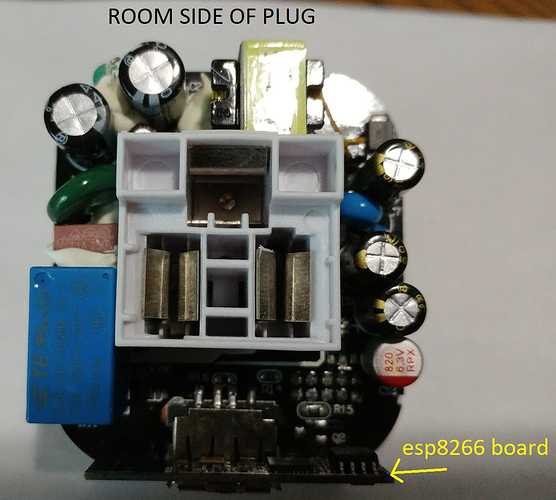

Socket side of relay board alt text

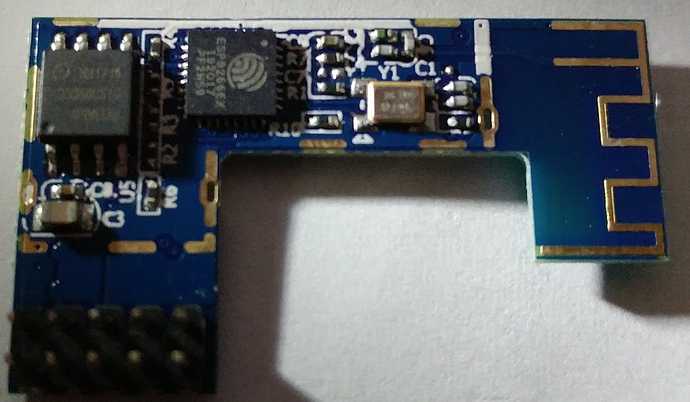

ESP8266 board alt text

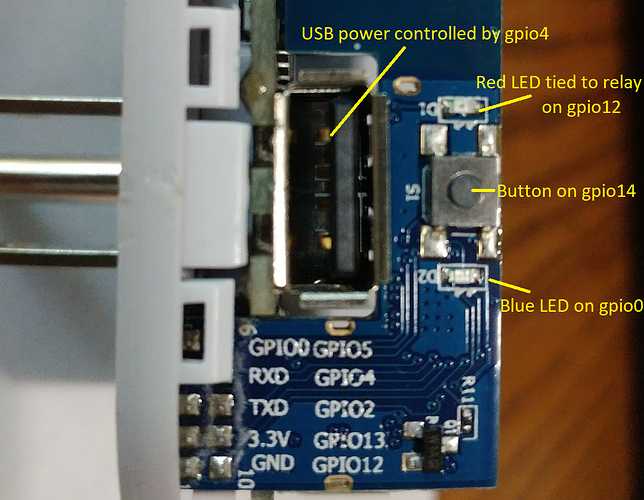

GPIO Descriptions alt text

GPIO Pinout

PinFunction
GPIO0BLue Status LED
GPIO4USB Relay
GPIO12Mains Relay (with Red LED)
GPIO14Switch Input

Basic Configuration

# Basic Config
esphome:
  name: azpenhome

esp8266:
  board: esp01_1m

# OTA flashing
ota:
  - platform: esphome


wifi: # Your Wifi network details

# Enable fallback hotspot in case wifi connection fails
  ap:


# Enabling the logging component
logger:


# Enable Home Assistant API
api:


# Enable the captive portal
captive_portal:


# Enable WEB server for status and updates.
web_server:


# Button on top of plug.
binary_sensor:
  - platform: gpio
    pin:
      number: GPIO14
      mode: INPUT_PULLUP
      inverted: True
    name: "Relay Button"
    on_press:
      - switch.toggle: relay


# Status LED for blue light.
status_led:
  pin:
    number: GPIO0
    inverted: true


switch:
  # Main relay
  - platform: gpio
    name: "Relay"
    pin: GPIO12
    id: relay


  # USB Relay
  - platform: gpio
    name: "USB Relay"
    pin: GPIO4
    id: usbrelay
