AGL Switch 2, 3 gang variants

AGL Switch 2, 3 gang variants

Device Type: switch
Electrical Standard: br
Board: esp8266
Difficulty: Disassembly required, 3/5

The AGL Switch is available in Brazil. AGL

General Notes

This config was created based on the 2 gang switch that I had.

Product Images

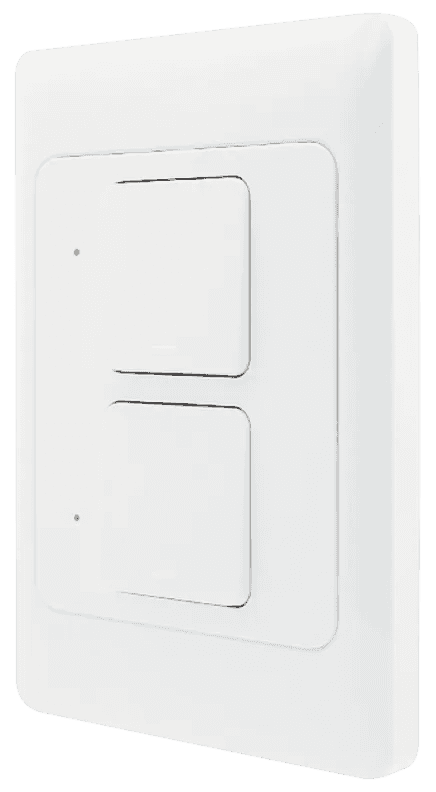

Front of 2 gang switch alt text

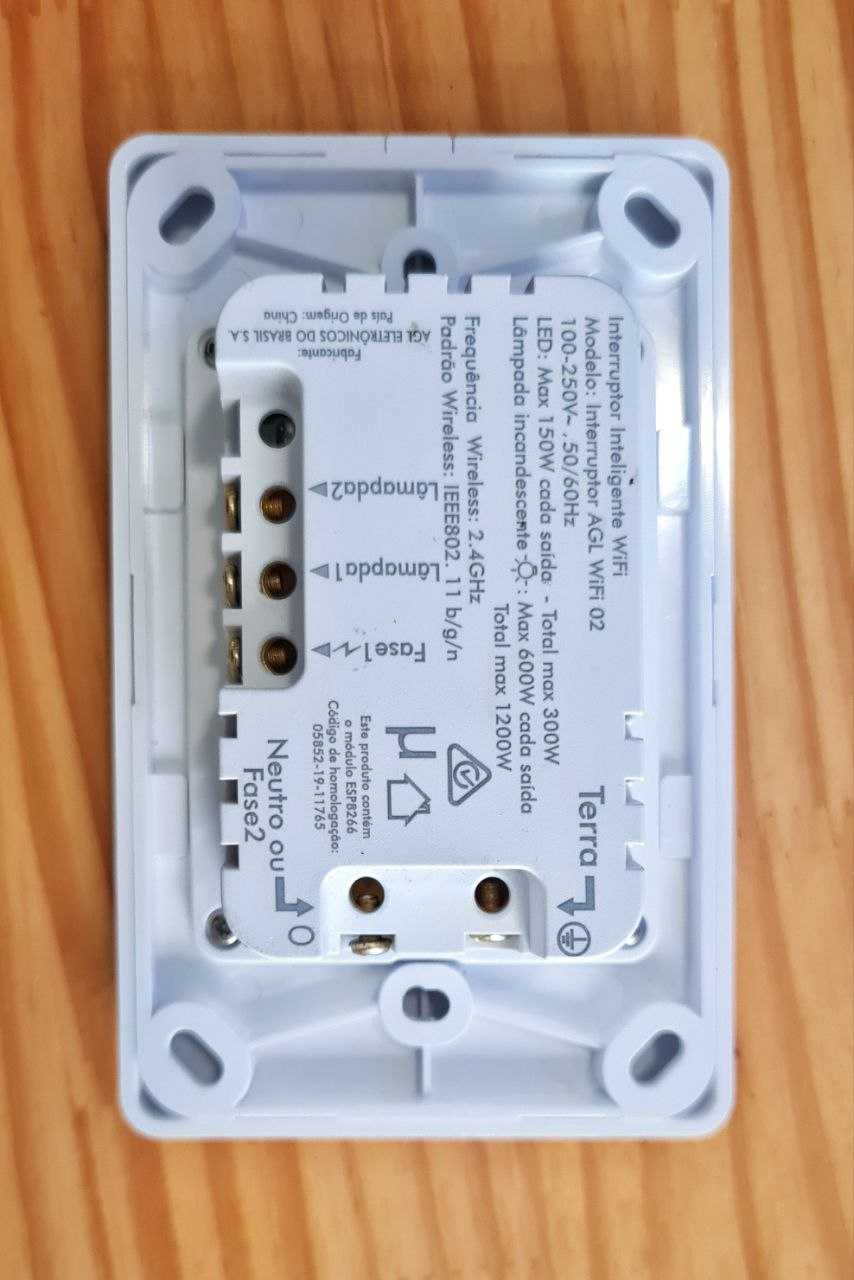

Back of 2 gang switch alt text

GPIO Pinout

2-Gang Version

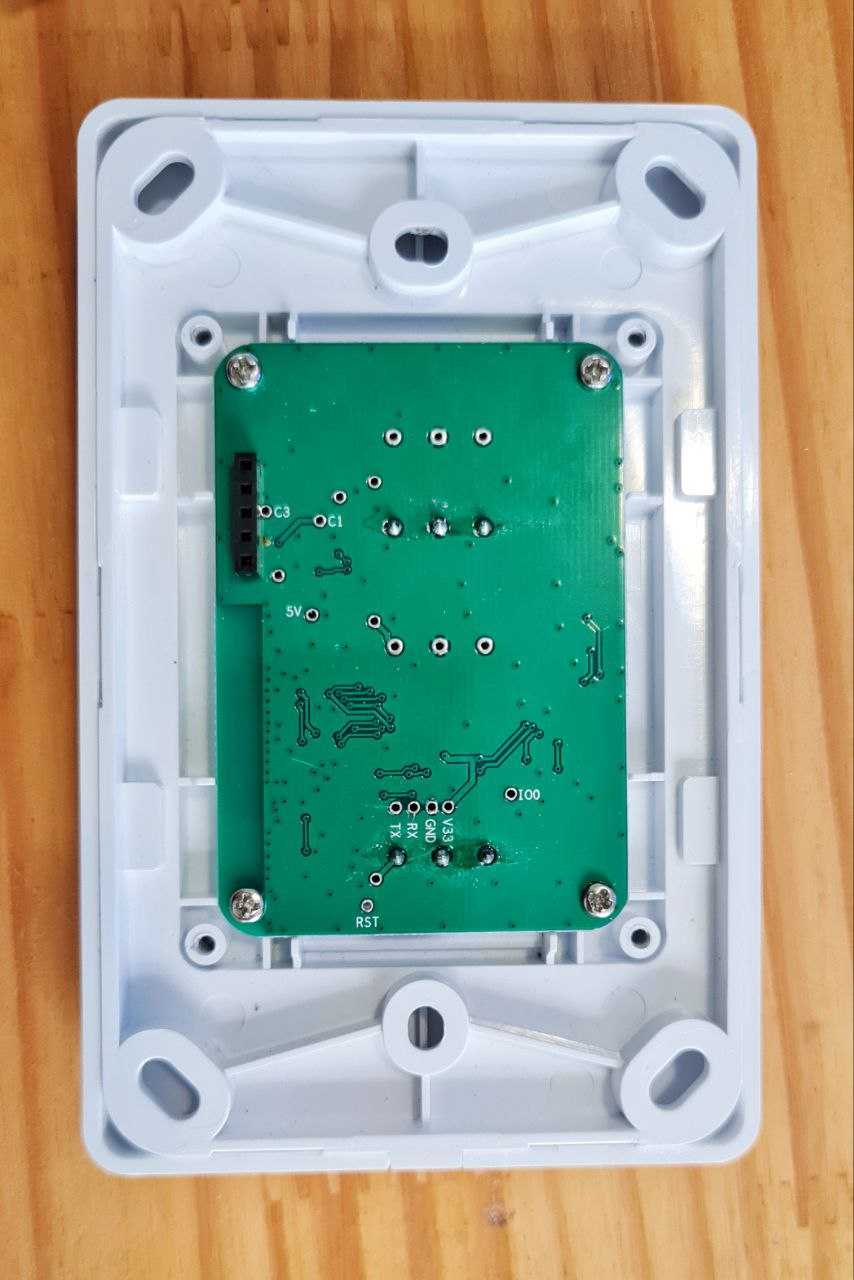

PCB alt text

PinFunction
GPIO2Status LED
GPIO16Button 1 (HIGH = off, LOW = on)
GPIO5Button 2 (HIGH = off, LOW = on)
GPIO13Relay 1
GPIO12Relay 2

3-Gang Version

PinFunction
GPIO2Status LED
GPIO16Button 1 (HIGH = off, LOW = on)
GPIO5Button 2 (HIGH = off, LOW = on)
GPIO4Button 3 (HIGH = off, LOW = on)
GPIO13Relay 1
GPIO12Relay 2
GPIO14Relay 3

Basic Configuration (2-Gang)

esphome:
  name: example-device
  friendly_name: Example Device

esp8266:
  board: esp01_1m


# OTA flashing
ota:
  - platform: esphome


wifi: # Your Wifi network details

# Enable fallback hotspot in case wifi connection fails
  ap:


# Enabling the logging component
logger:


# Enable Home Assistant API
api:


# Enable the captive portal
captive_portal:


sensor:
  - platform: uptime
    name: AGL 2 Gang Uptime
    update_interval: 60s


text_sensor:
  - platform: version
    name: AGL 2 Gang Version


binary_sensor:
  - platform: status
    name: AGL 2 Gang Status
  - platform: gpio
    pin:
      number: GPIO16
      inverted: True
    name: AGL 2 Gang Button 1
    on_press:
      - switch.toggle: relay_1
  - platform: gpio
    pin:
      number: GPIO5
      mode: INPUT_PULLUP
      inverted: True
    name: "AGL 2 Gang Button 2"
    on_press:
      - switch.toggle: relay_2


switch:
  - platform: restart
    name: AGL 2 Gang Restart
  - platform: gpio
    name: "AGL 2 Gang Switch 1"
    pin: GPIO13
    id: relay_1
  - platform: gpio
    name: "AGL 2 Gang Switch 2"
    pin: GPIO12
    id: relay_2


light:
  - platform: status_led
    id: blue_led
    restore_mode: ALWAYS_ON
    pin:
      number: GPIO2
      inverted: true
    internal: true
